Release Model 3 Highland Long Range!

• Internal Naming → „Tesla Model 3H“

• Variant / Version → H5LD#Qb1## → Highland - LG 5L NMC79 - Dual Motor

• Maximum vehicle design speed → 201 km/h

• Weights:

  • Mass of the vehicle in running order → 1899 kg
  • Reference mass → 1861 kg
  • Vehicle test mass → 1924 kg
  • Maximum mass → 2263 kg
  • Front axle → 958 kg
  • Rear axle → 941 kg
  • Load Capacity → 414kg - 477kg (~50kg more than M3 Refresh)

• Motors:

  • DU CAT 2 → 3D3 / 3D7A
  • Maximum net power →
    Front: (3D3A (drive unit)): 158 kW @ 6625 min-1,
    Rear:(3D7A (drive unit)): 208 kW @ 6500 min-1
  • Maximum 30 minutes power →
    Front: (3D3A (drive unit)): 65 kW
    Rear:(3D7A (drive unit)): 88 kW
  • Maximum net torque →
    Front: (3D3A (drive unit)): 240 Nm @ 0 - 6200 min-1,
    Rear:(3D7A (drive unit)): 350 Nm @ 500 – 5500 min-1
  • Test DC voltage ->335 V
  • Maximum Current → Rear 655A / Front 630A

• Battery:

  • Tesla E31 aka „5L“
  • Nominal voltage → 345 V
  • Number of cells → 4416
  • Battery Mass → 456 kg
  • Battery Capacity → 230 Ah
  • Battery Energy → 79 kWh

• Gearbox:

  • Ratio → 9,04

• Wheels:

  • 235/45R18
  • 235/40R19 → Hankook Ion Evo → Rolling Resistance 7.00



• Axles:

  • Alignment

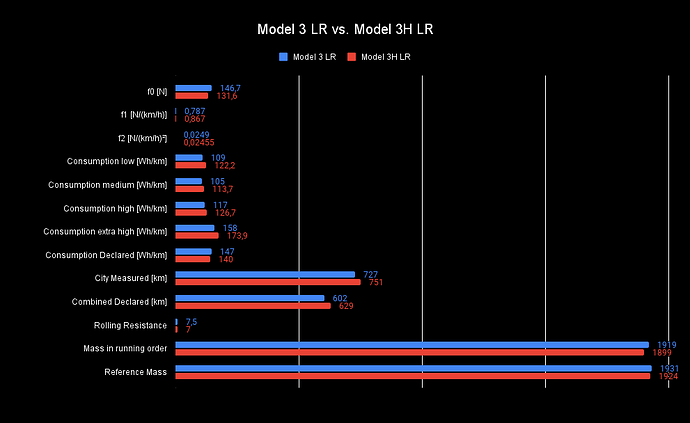

• WLTP „Vehicle High“ = 19" Wheels

  • Cycle Energy Demand → 13162608 J
  • f0, N → 131.6
  • f1, N/(km/h) → 0.867
  • f2, N/(km/h)² → 0.02455






---
