Release Model 3 Highland RWD!

• Internal Naming → „Tesla Model 3H“

• Variant / Version → H6LR#Qb1## → Highland - CATL 6L LFP60 - RWD

• Maximum vehicle design speed → 201 km/h

• Weights:

  • Mass of the vehicle in running order → 1836 kg
  • Reference mass → 1861 kg
  • Vehicle test mass → 1932 kg
  • Maximum mass → 2200 kg
  • Front axle → 893 kg
  • Rear axle → 943 kg
  • Load Capacity → 414kg - 439kg (~50kg more than M3 Refresh)

• Motors:

  • DU CAT 2 → 3D7A → Permanent magnet assisted reluctance
  • Maximum net power → Rear:(3D7A (drive unit)): 208 kW @ 6500 min-1
  • Maximum 30 minutes power → Rear:(3D7A (drive unit)): 88 kW
  • Maximum net torque → Rear:(3D7A (drive unit)): 350 Nm @ 500 – 5500 min-1
  • Test DC voltage ->335 V
  • Motor crankshaft maximum speed → 19300 rpm
  • Maximum Current → 655A

• Battery:

  • Tesla E14 aka „6L“
  • Nominal voltage → 345 V
  • Number of cells → 108
  • Battery Mass → 476 kg
  • Battery Capacity → 173 Ah
  • Battery Energy → 60kWh

• Gearbox:

  • Ratio → 9,04

• Wheels:

  • 235/45R18
  • 235/40R19 → Hankook Ion Evo → Rolling Resistance 7.00



• Axles:

  • Alignment

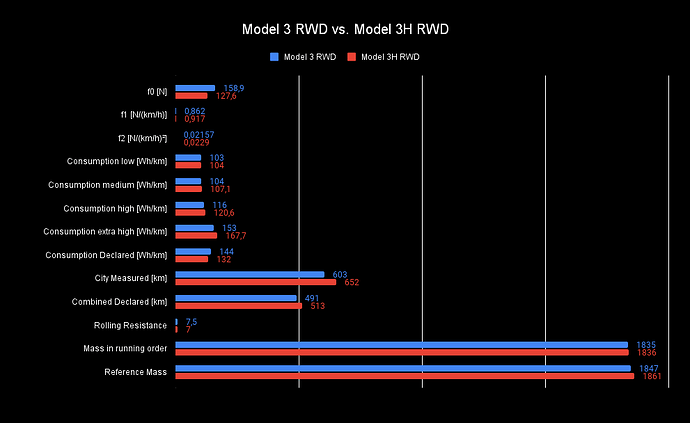

• WLTP „Vehicle High“ = 19" Wheels

  • Cycle Energy Demand → 12743542 J
  • f0, N → 127.6
  • f1, N/(km/h) → 0.917
  • f2, N/(km/h)² → 0.02290






---
