[Wiki] Model 3 / Model Y - Motoren / Drive Units

[eivissa]

Motor Update

https://x.com/eivissacopter/status/1768546967662014806?s=20

• Introduction of two new Drive Unit Cat 4 motors in an update to the EC-TC of the Model Y RWD with CATL 6L pack out of Grünheide.
• 4D3A is set to replace the less efficient 4D1C and also the 4D5, which was never released.
• 4D3B is declared as another new rear motor, but all specs suggest it being a new front motor replacing the old 3D3 motor, which was released back in 2017.
• The Rotor Inertia Mass also changed from 4D1C to 4D3A with a reduction of 4%. So it looks like there were more changes „under the hood“ than just the inverter. Maybe a lighter Rotor.

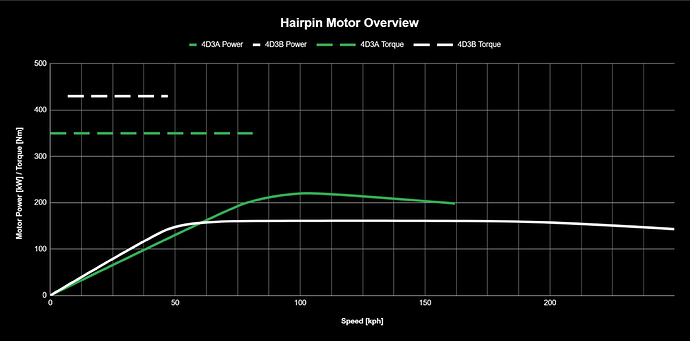

Maximum Power and Torque vs Speed

…According to the certification documents

DU CAT 3 → 3D7B → Results

@eivissa

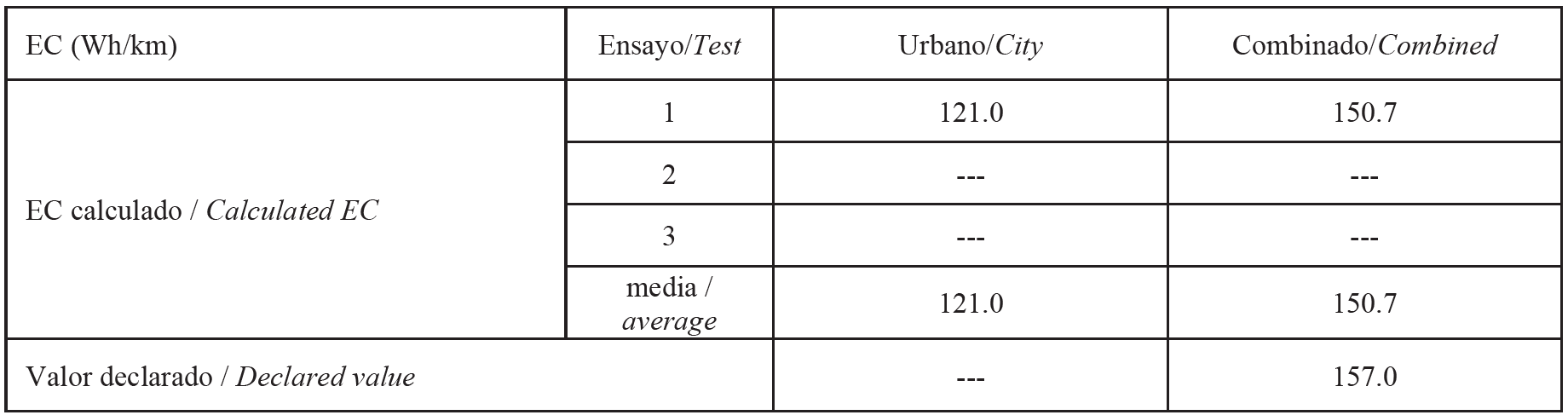

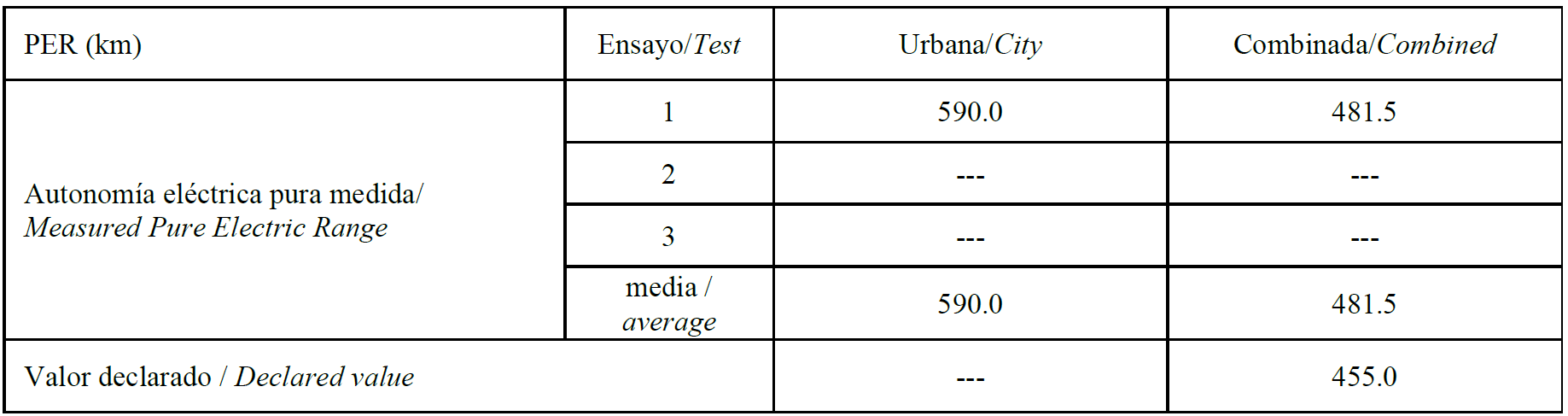

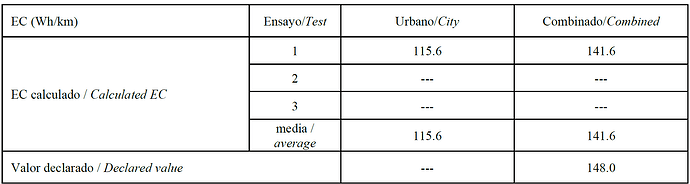

WLTP Test Results 20" Induction Wheels:

WLTP Test Results 19" Gemini Wheels:

DU CAT 4 → 4D3A → Results

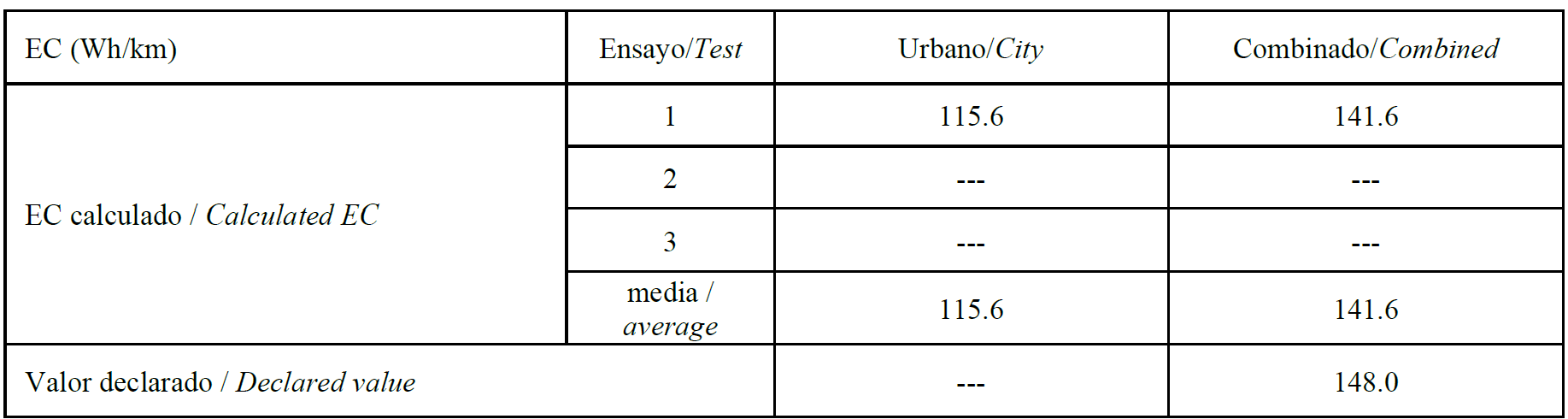

WLTP Test Results 20" Induction Wheels:

WLTP Test Results 19" Gemini Wheels:

[eivissa]

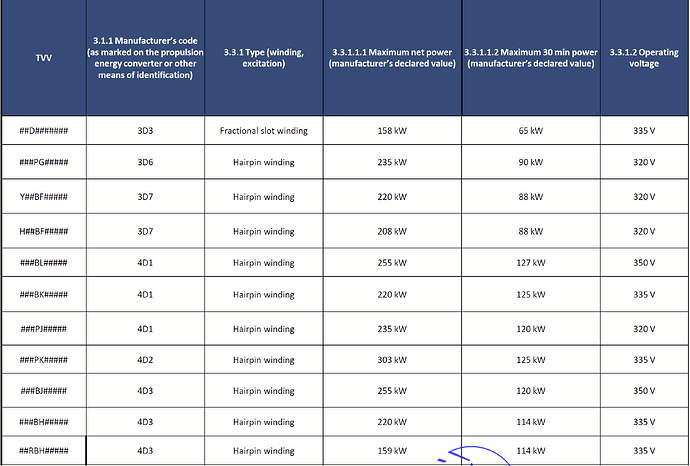

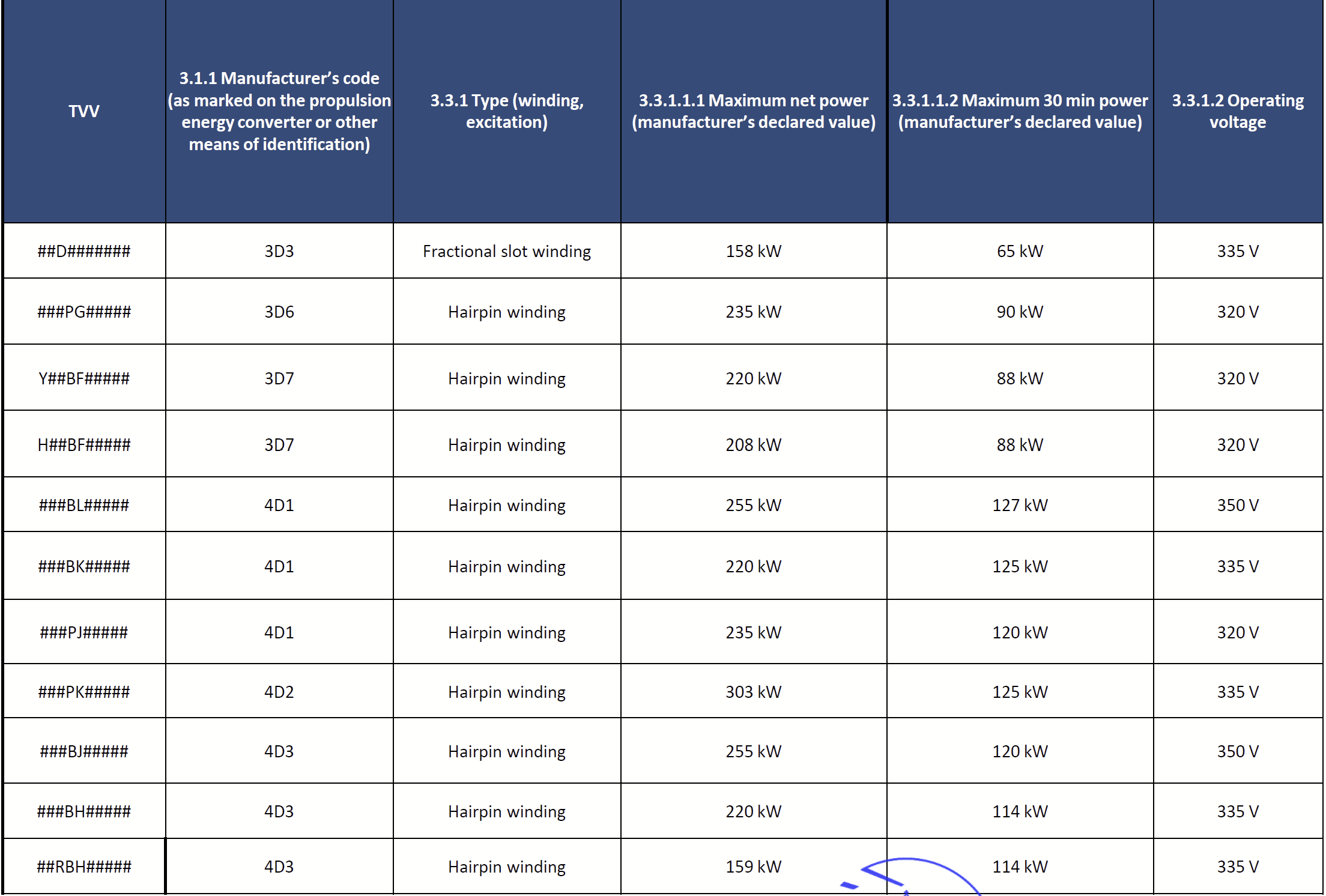

In der Typgenehmigung gibt es nun endlich eine Motorübersicht

[eivissa]

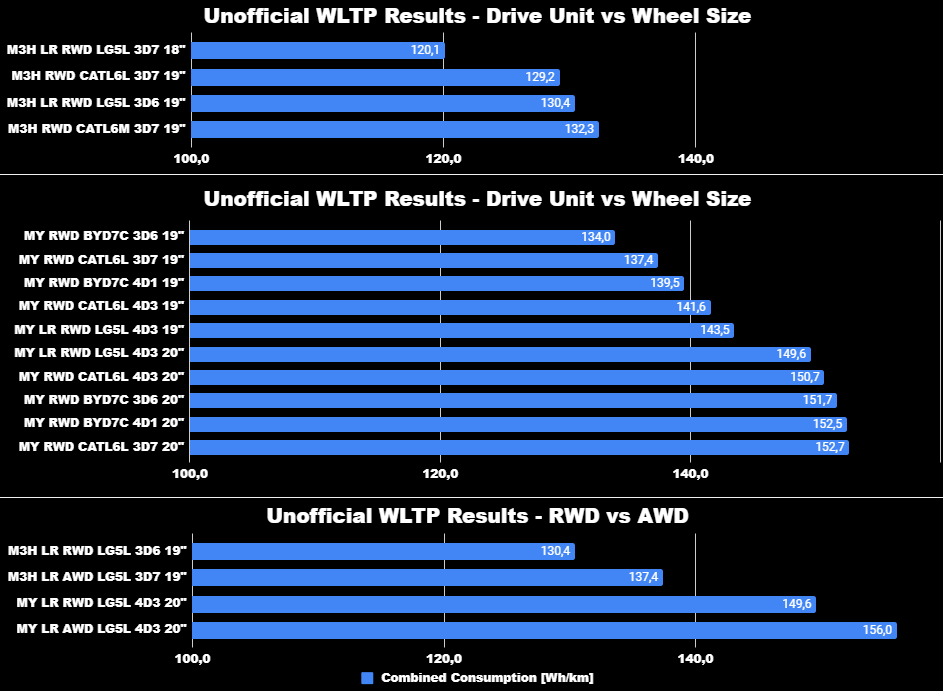

Kaufoptionen vs Stromverbrauch

Model 3H RWD 18" 235mm ~120Wh/km
Model 3H RWD 19" 235mm ~130Wh/km
Model Y RWD 19" 255mm ~140Wh/km
Model Y RWD 20" 255mm ~150Wh/km
All-Wheel-Drive Penalty ~7Wh/km

• Größeres Rad für schönere Optik?____________+10Wh/km
• Model Y für mehr Platz?______________________+10Wh/km
• Allradantrieb für bessere Traktion im Winter?__+7Wh/km

(WLTP Verbrauchsdaten enthalten als Angabe von Betriebskosten ca. 12,4% Ladeverluste)

[eivissa]

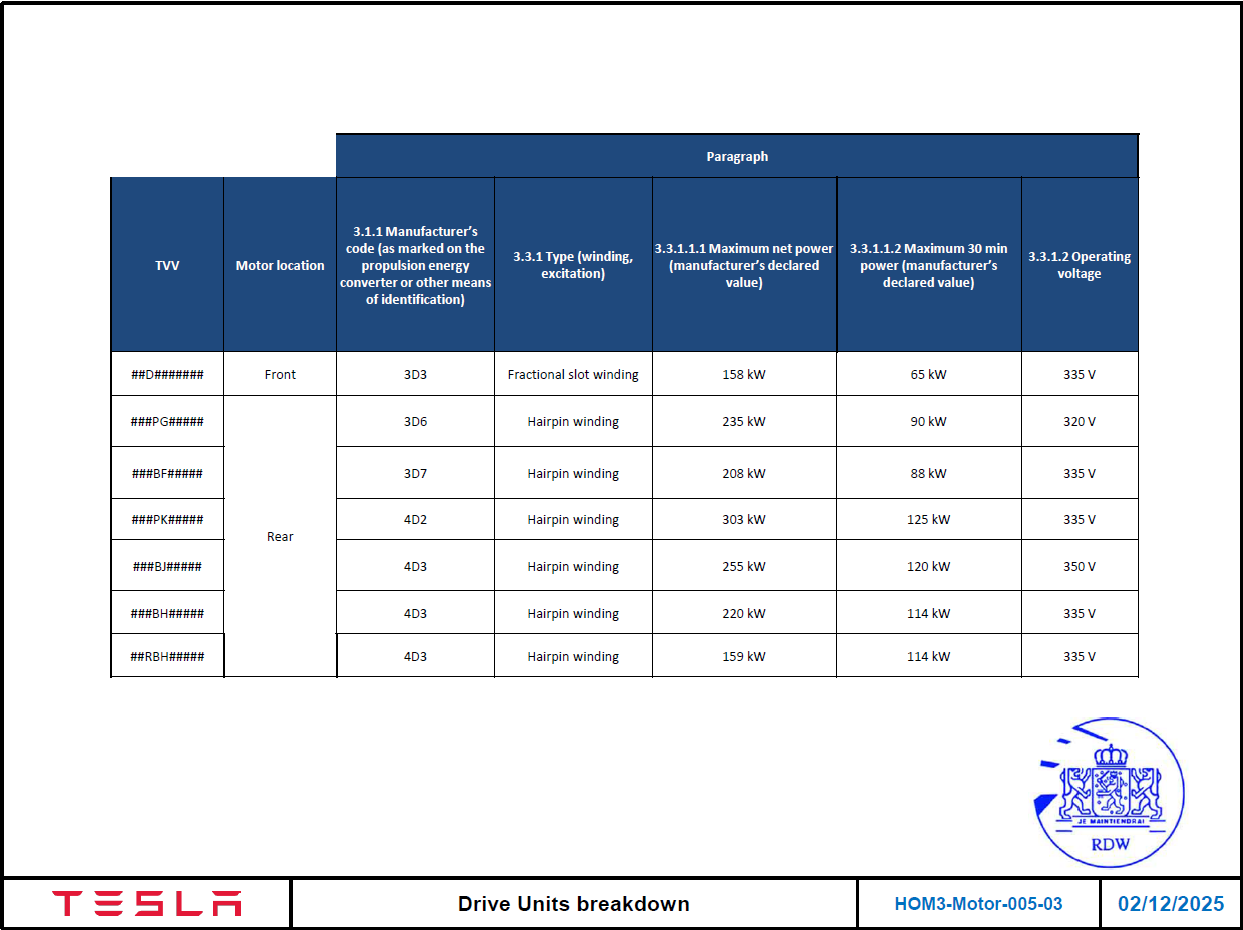

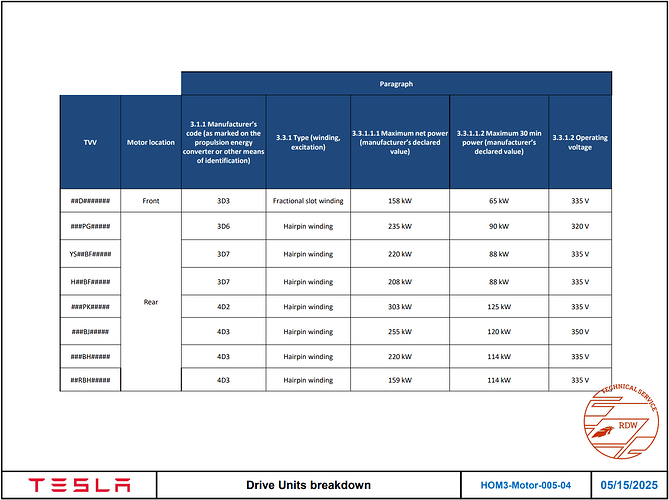

Drive Unit Overview Update from latest type certificate:

[eivissa]

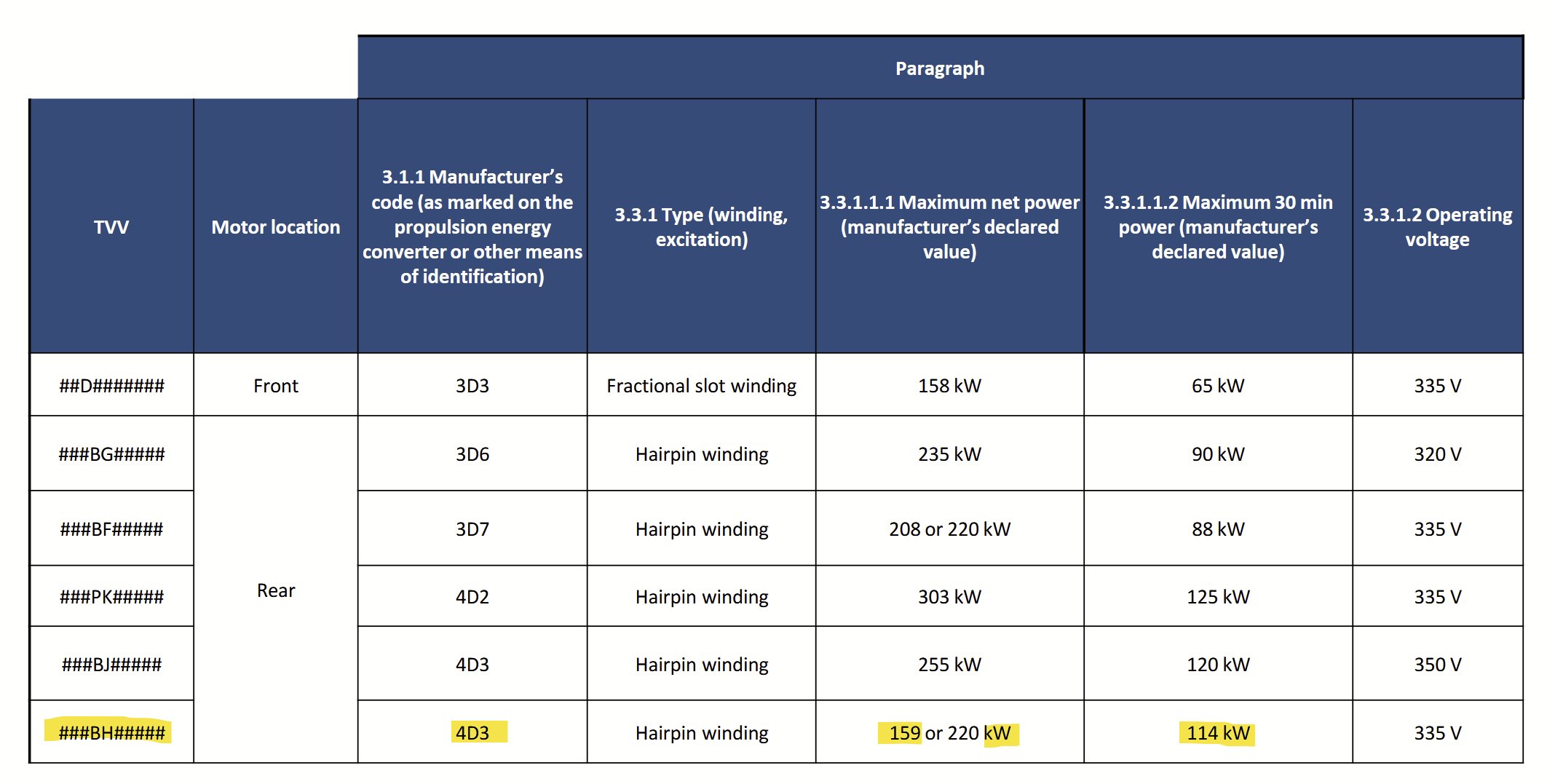

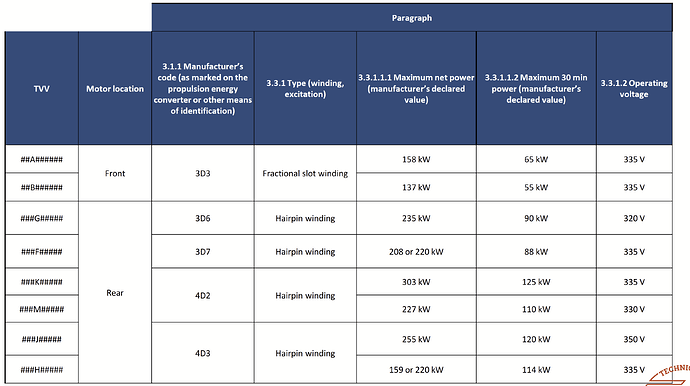

Drive Unit Overview Update from latest type certificate:
